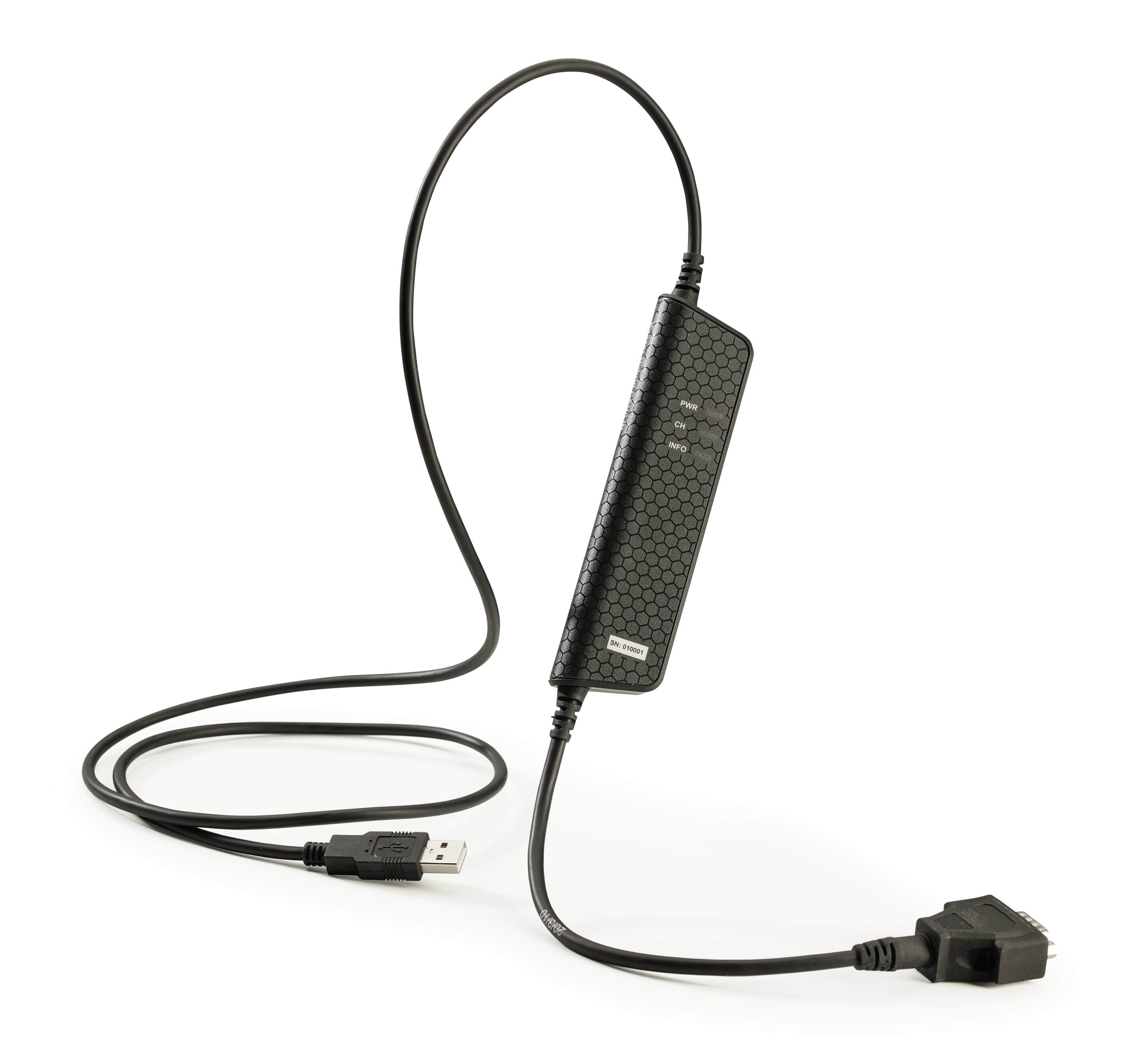

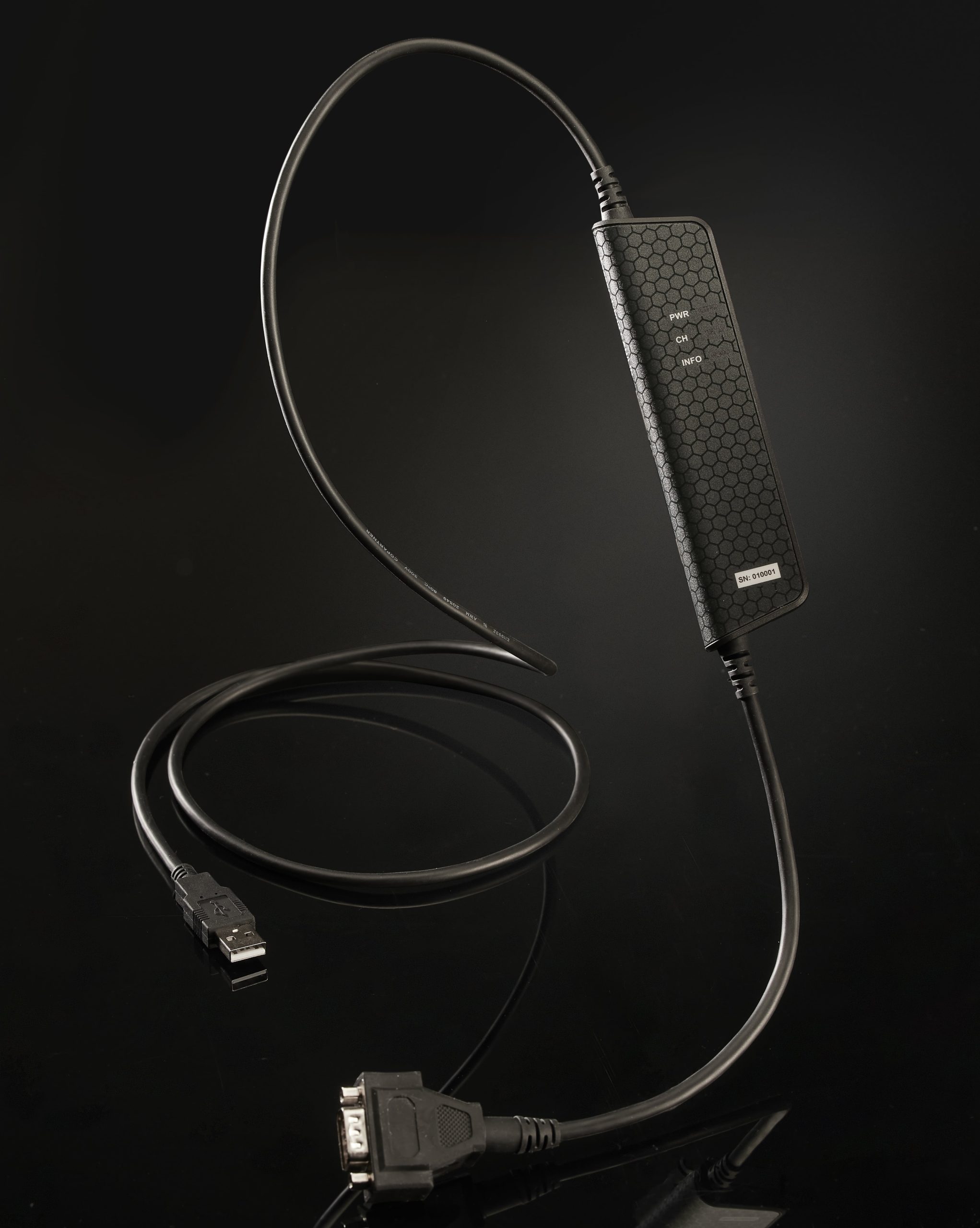

Kvaser Hybrid CAN/LIN

编码: 73-30130-01284-4
价格:¥3,904.15 (包含 增值税)

Kvaser Hybrid CAN/LIN是一个灵活的单通道接口,可设定为CAN或LIN。这使Kvaser Hybrid CAN/LIN成为汽车通讯检测工程师必备的“通用接口”!
通过一个标准USB接口和一个附带9针D-SUB连接器的CAN/LIN通道,该高速接口可将电脑连接到CAN、CAN FD或LIN。


Kvaser Hybrid CAN/LIN是一个灵活的单通道接口,可设定为CAN或LIN。这使Kvaser Hybrid CAN/LIN成为汽车通讯检测工程师必备的“通用接口”!
通过一个标准USB接口和一个附带9针D-SUB连接器的CAN/LIN通道,该高速接口可将电脑连接到CAN、CAN FD或LIN。


波特率

50-1000 kbps

温度范围

-40 - 85 °C

时间戳

50

消息每秒接收

20000 mps

消息每秒发送

20000 mps

重量

120 g

长度

165 mm

高度

17 mm

通道

1

认证

CE, RoHS

接口

USB

分类

LIN, Interfaces, Hardware, CAN

系統

Linux, Win 7, Win 10, Win 8

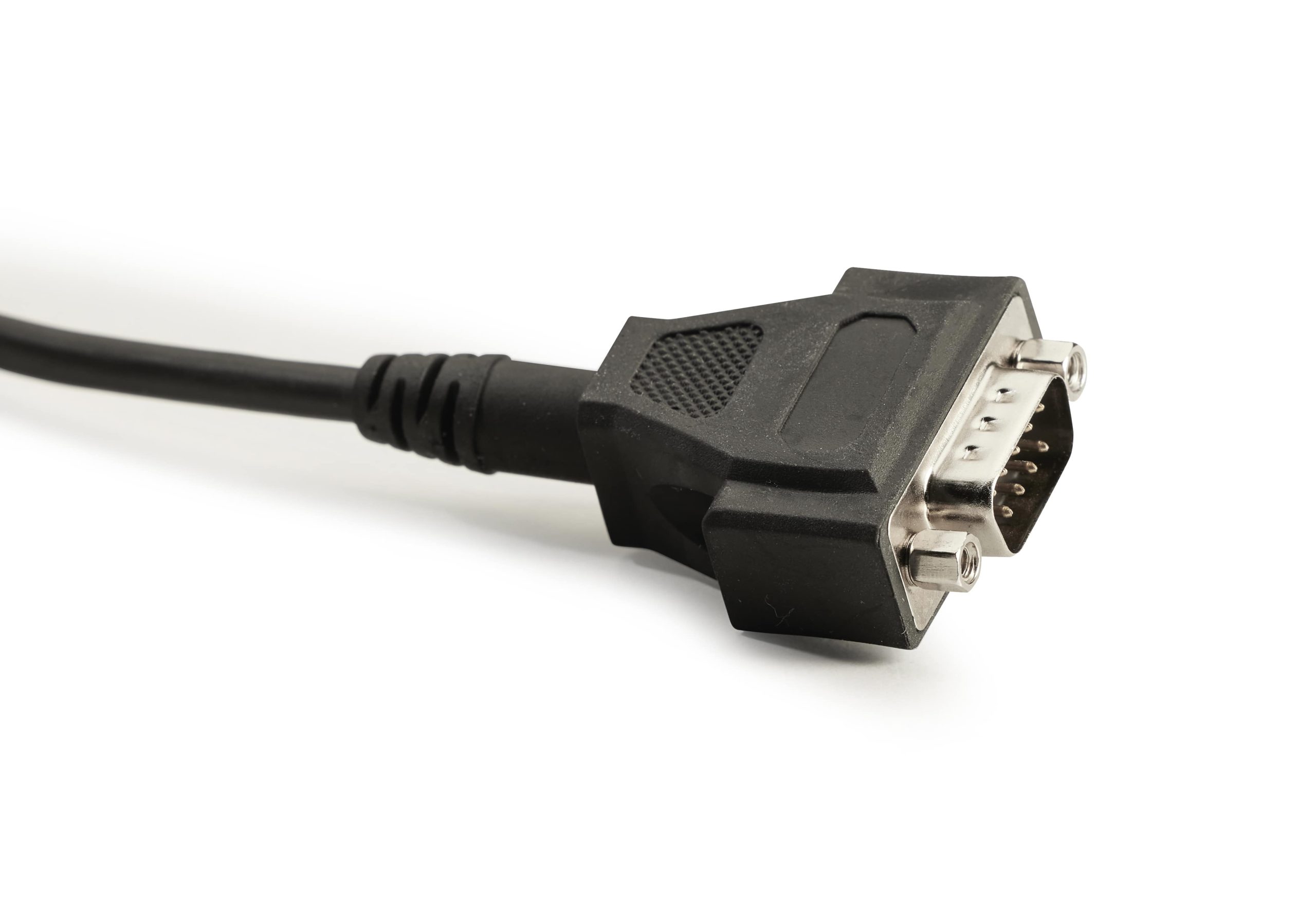

连接器

DSUB 9

电流隔离

错误帧生成

错误计数器读取

静音模式

材料

PC-ABS

声响提示

目前的消费

Max 195mA

Driver

Kvaser SocketCAN Device Drivers

Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardware.

Version V1.14.251 Download

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.

Version V5.43.472 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.43.472 Download
Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.31.472 Download
Documentation

Kvaser Hybrid CAN/LIN User's Guide

Kvaser Hybrid CAN/LIN User's Guide

Version V1.3.230913 Download
Development Kits and Tools

Kvaser Canlib Android Library

Kvaser CANlib Android Library

Version V1.2.0 Download

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.24.935 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.43.472 Download
Other

XTM, Free LIN Viewer

A free of charge LIN bus viewer. This demo version only operates in slave mode and only monitors the LIN bus. Works with Kvaser Leaf Professional LIN and Hybrid family of products.

Version V3.8.36 Download

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.25.575 Download
