Kvaser J1939-13 Type II Dsub9 Adapter 30 cm
编码: 73-30130-01392-6
价格：¥765.01 (包含 增值税)
Log in for shipping information.

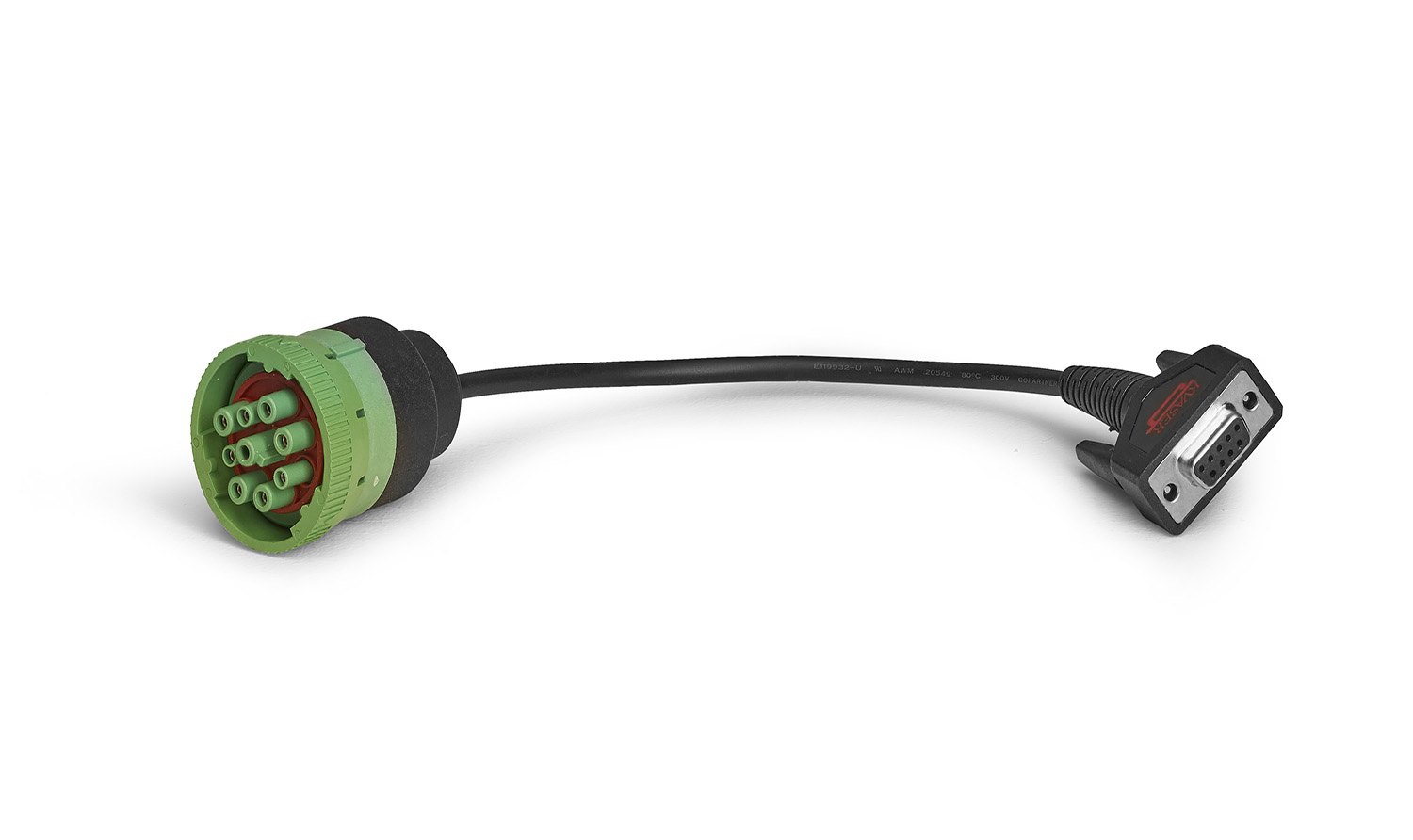

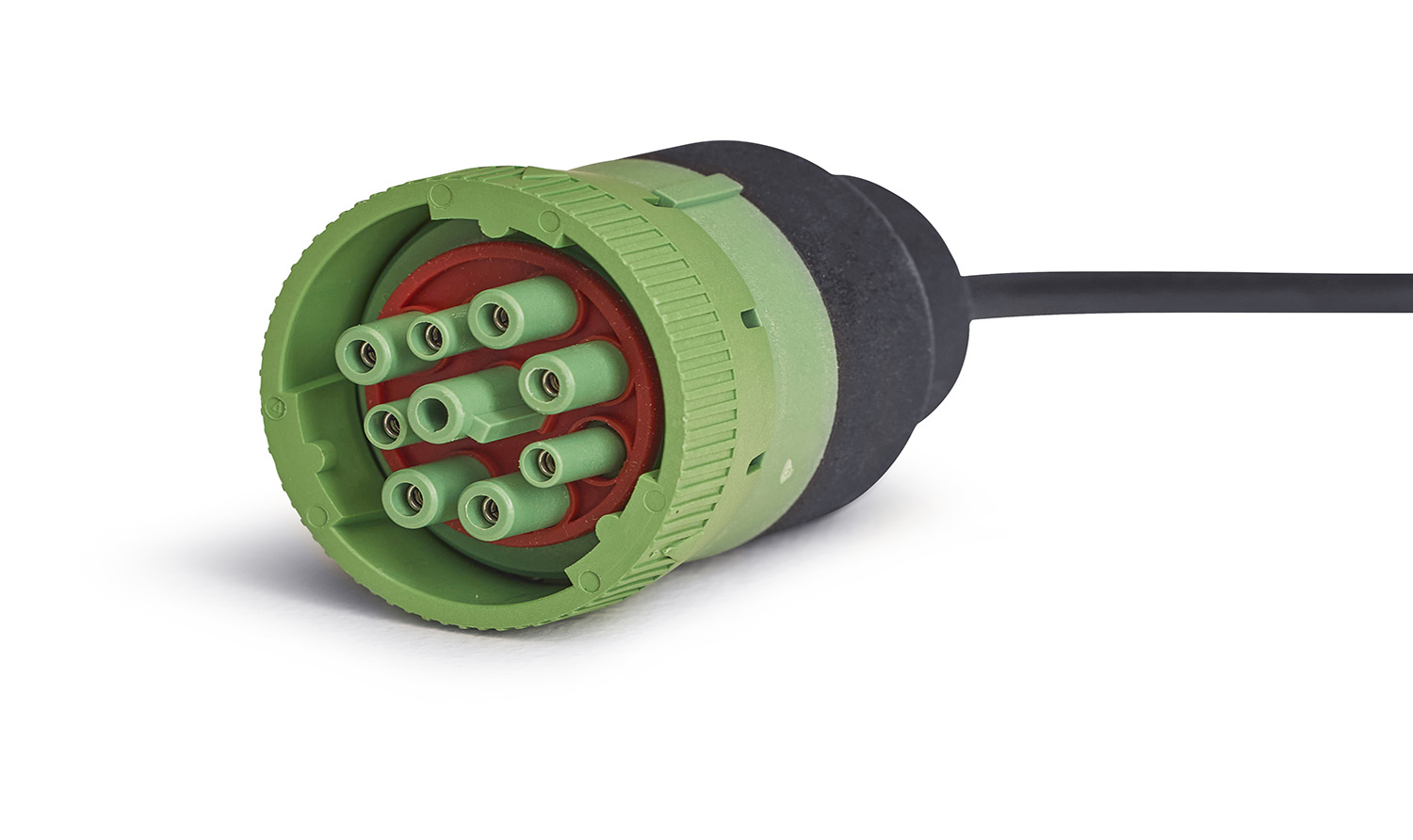

With a standard 9-pin Dsub at one end and a 9-pin J1939-13 Type II compliant CAN connector at the other, this 30 cm cable connects the Kvaser Leaf v3 or any CAN interface to a heavy-duty vehicle. Kvaser’s adapter cables have an IP67-rated, ruggedised construction that meets demanding use cases. An in-house designed compact J1939-13 connector attaches to the cable with extra strong strain relief, allowing the cable to bend easily to 90 degrees.
Major Features
- Standard 9-pin Dsub connector
- J1939-13-Type II connector
Learn more:
Youtube: Kvaser CAN adapter cables
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting support@kvaser.com.
温度范围
-40 - 85 °C
重量
103 g
长度
300 mm
通道
1
认证
CE, RoHS
接口
Cable
分类
CABLES, Hardware
连接器
J1939-13 Type II
电流隔离
否
错误帧生成
否
错误计数器读取
否
静音模式
否
声响提示
否
