Kvaser U100-C
编码: 73-30130-01340-7
价格:¥4,357.28 (包含 增值税)

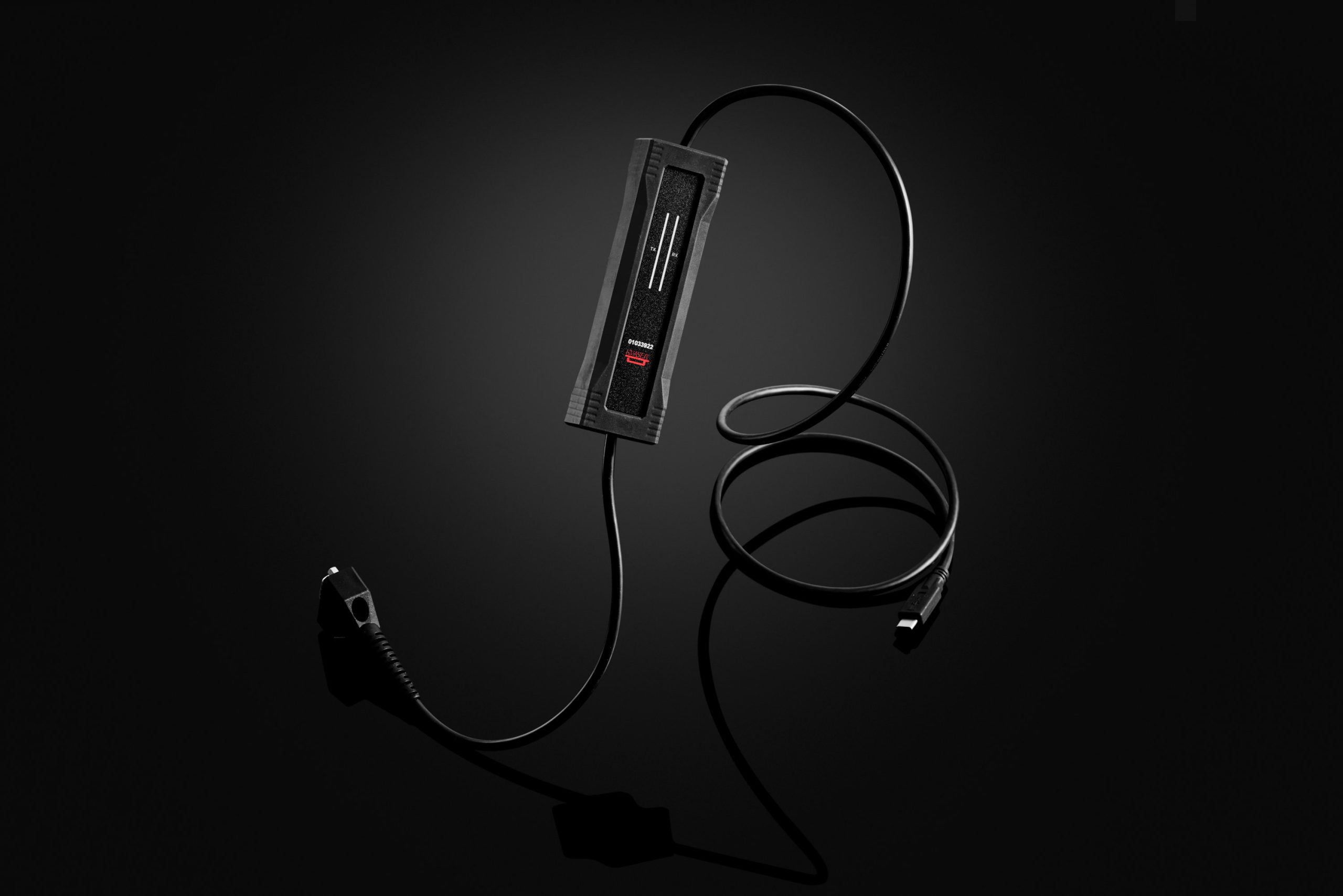

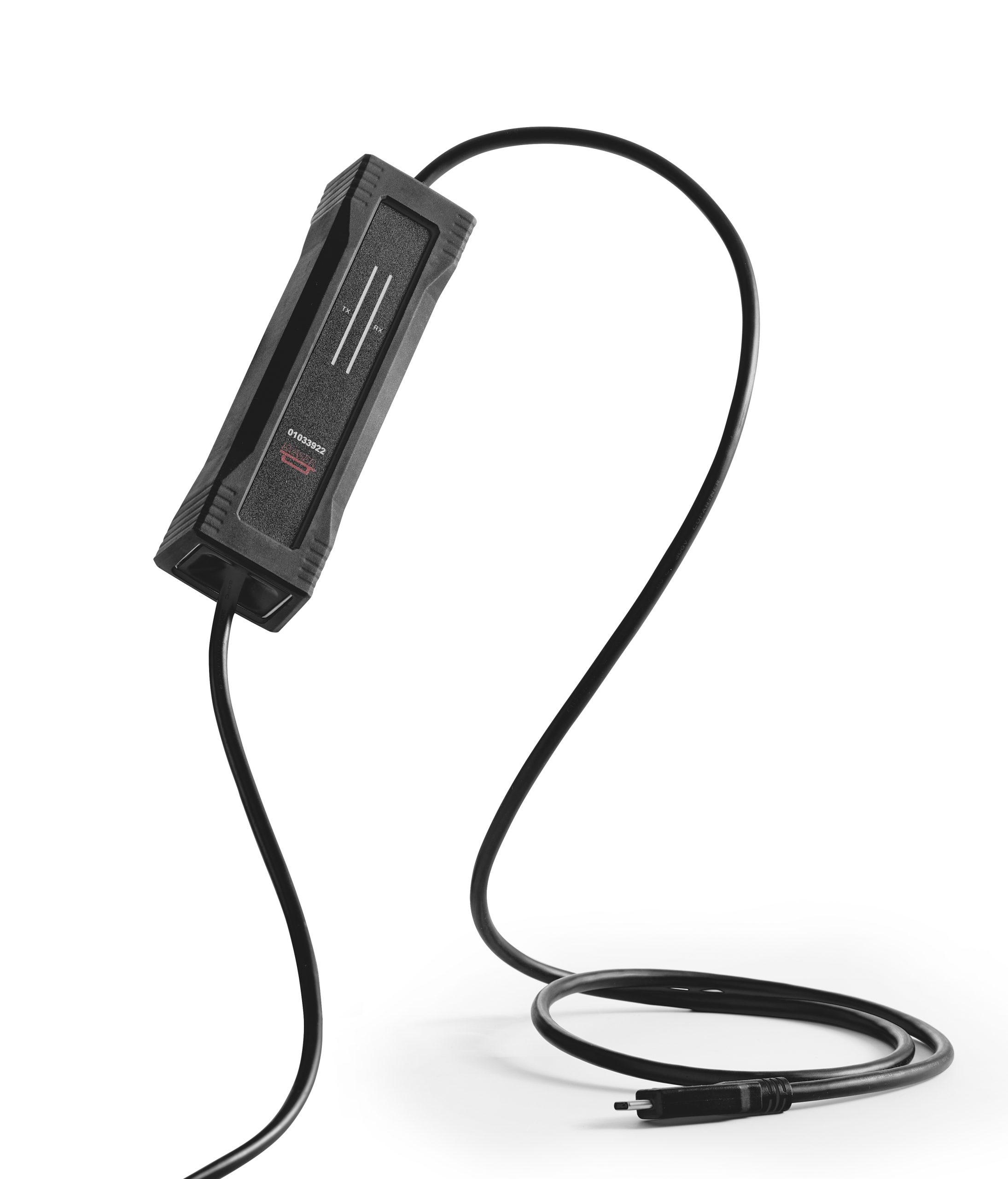

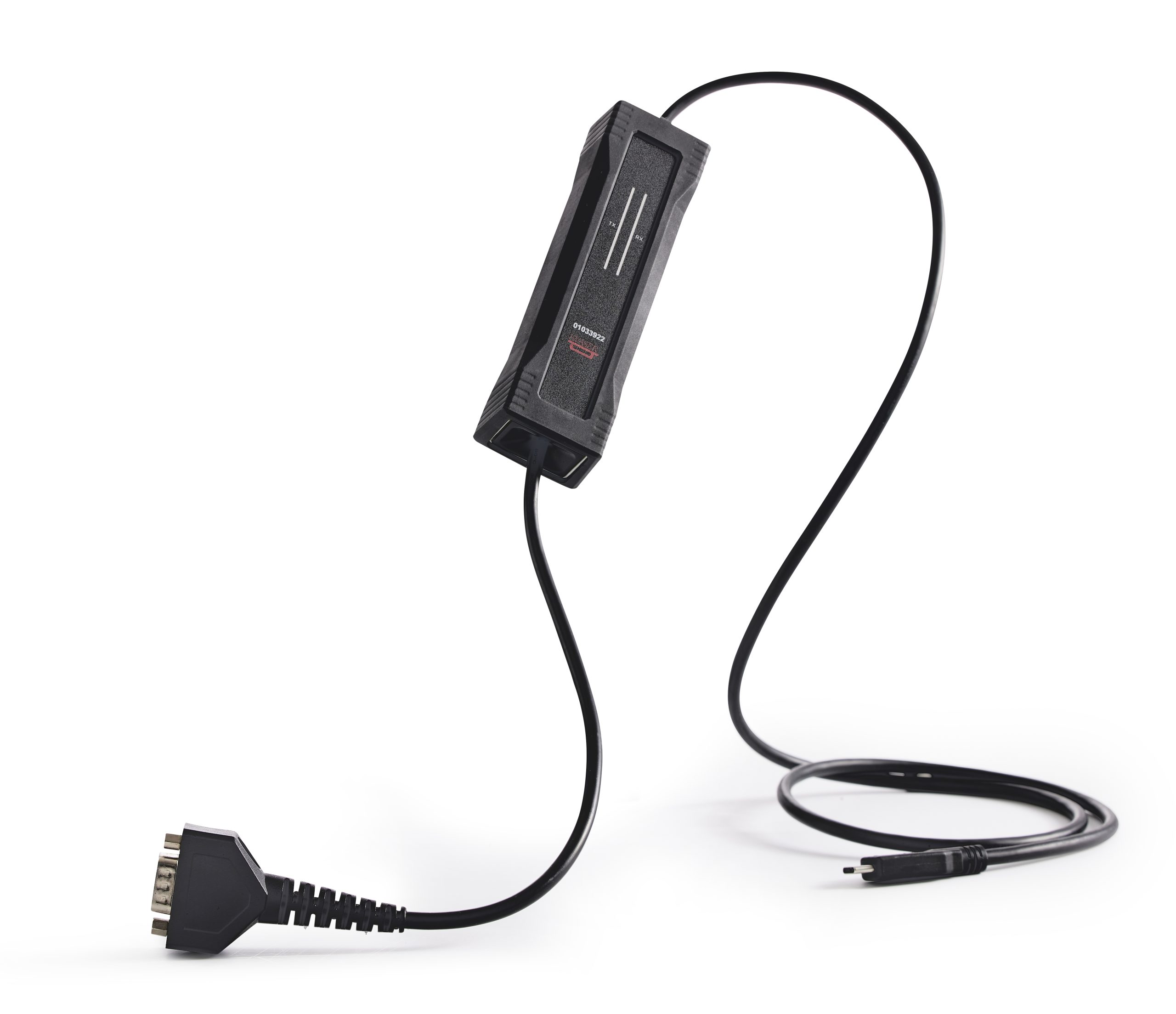

The latest laptops and PCs come with USB-C slots only, so the Kvaser U100-C (01340-7) has been added to Kvaser’s U100 range of robust, single-channel CAN/CAN FD to USB interfaces. This interface is based on the standard Kvaser U100 with DB-9 connector, but replaces the standard USB type “A” connector with the smaller USB-C format. As with other devices in the range, this is powered via the USB bus.
Robust, galvanically-reinforced (Tested according EN 60335) and signal and power isolated, the Kvaser U100 range offers enhanced electrical protection, a vibration, shock and drop-proof housing and high-quality cabling that establishes a new reference in CAN interface design.
Other variants of the U100 range pair a standard USB type “A” connector with a 9-pin D-SUB, M12 or OBD-II CAN connector. A Precision version is also available - the Kvaser U100P - with a standard USB type “A” connector to a 9-pin D-SUB.
Major Features
- Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Reinforced Galvanic Isolation. (Tested according EN 60335-1:2012 paragraph 13, 5000VAC rms applied for 60 seconds)
- 20 000 msg/s, timestamped with a resolution of 100 µs.
- Industrial grade temperature range, −40 oC to +85 oC.
- USB-C connector.
- Powered through the Type-C USB connector (a Type-A USB connector is also available).
- DB-9 connector (other connectors available).
- Supports bit rates from 10 Kbit/sec up to 1 Mbit/sec.
- Lightweight, glass fibre reinforced polyamide housing, overmolded with TPE.
- IP67 rated.

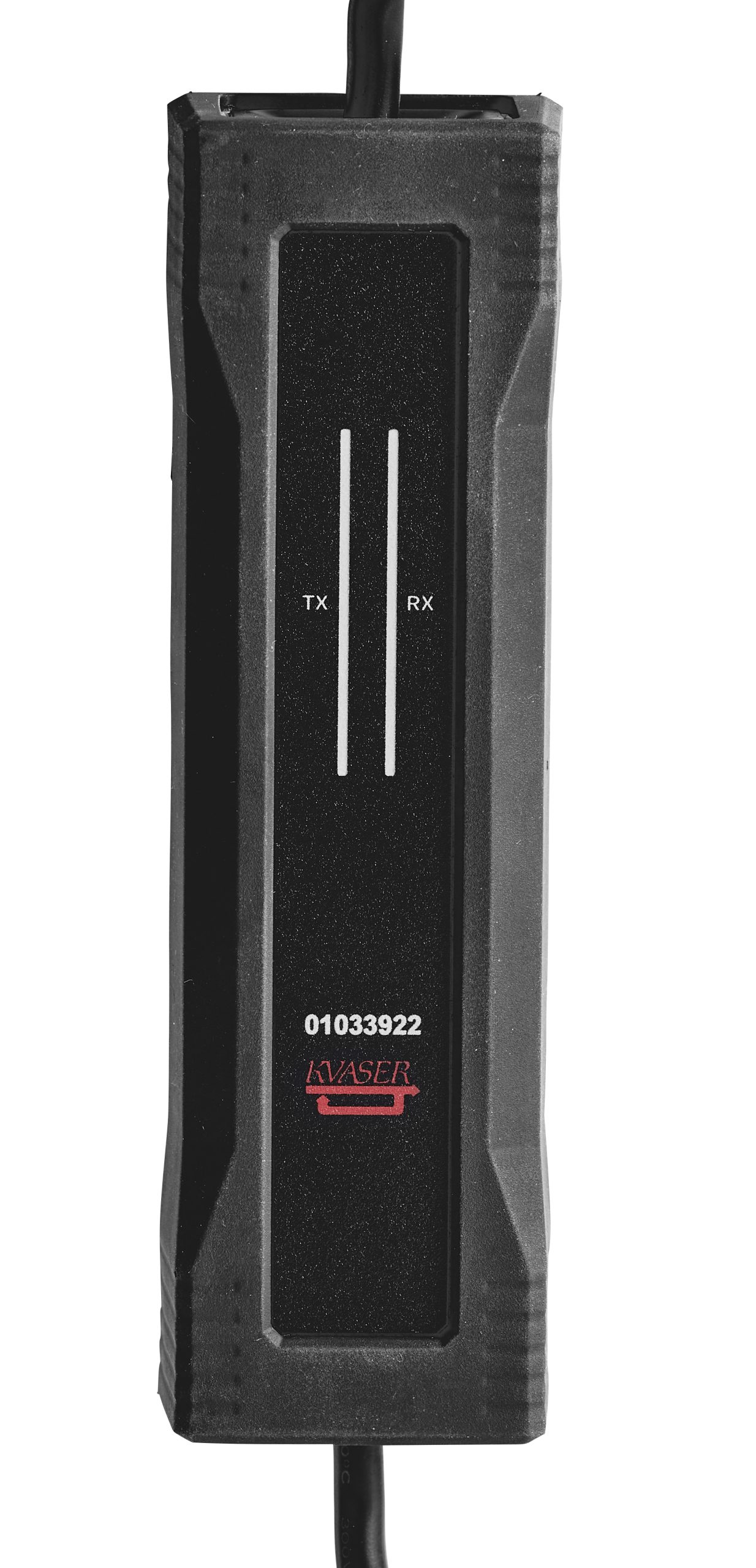

- Intuitive LED UI.
- Support for SocketCAN.
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
Warranty
- 2-Year Warranty. See our General Conditions and Policies for details.
Support
- Free Technical Support on all products available by contacting support@kvaser.com.
Software
- Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
波特率
10-1000 kbps
温度范围
-40 - 85 °C
时间戳
100
消息每秒接收
20000 mps
消息每秒发送
20000 mps
重量
167 g
长度
128 mm
高度
26 mm
通道
1
认证
CE, RoHS
接口
USB
分类
Interfaces, Hardware, CAN
系統
Linux, Win 7, Win 10, Win 8
连接器
DSUB 9
电流隔离
是
错误帧生成
否
错误计数器读取
否
静音模式
否
材料
2K, TPE surface on top of glass fibre reinforced polyamide
声响提示
否
目前的消费
Typical 250 mA
