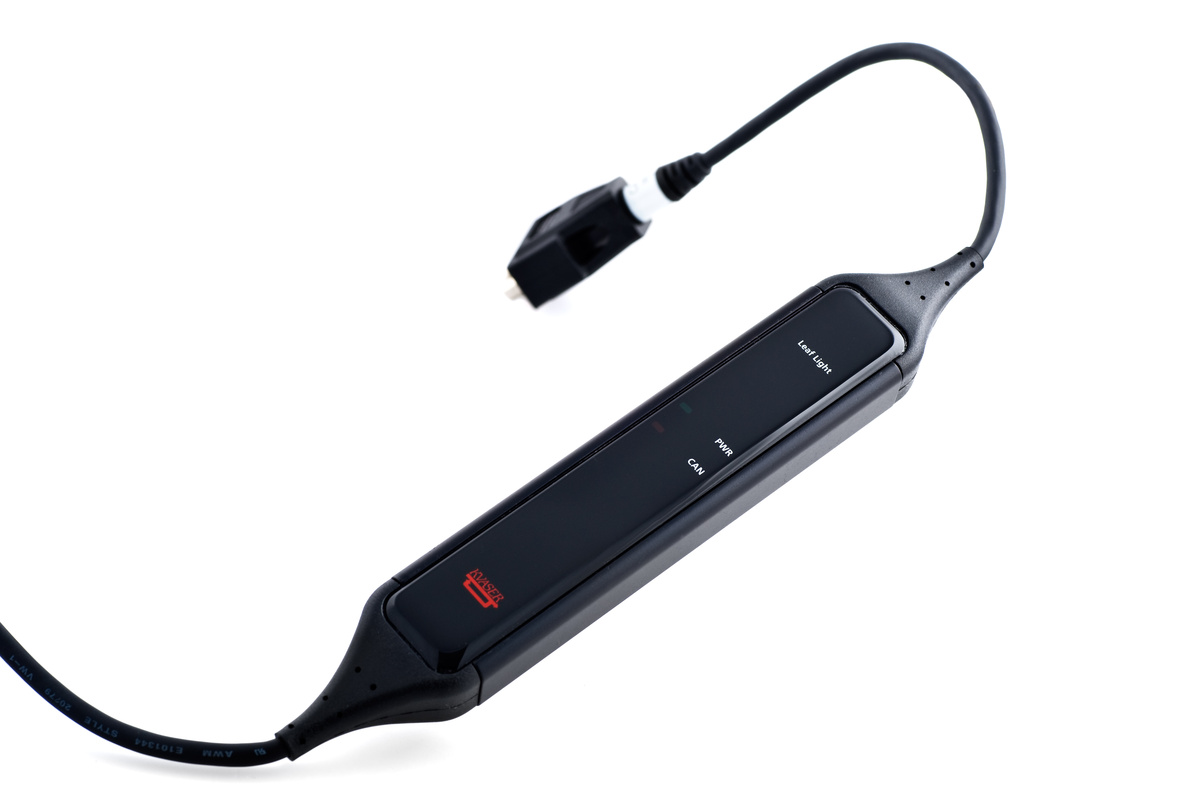

Kvaser Leaf Light Rugged HS

编码: 73-30130-00427-6

Kvaser Leaf Light Rugged HS是一款单通道USB转CAN产品

在经常有水和粉尘的极端环境里,IP67级的防护可以起到很好的保护作用

主要特性:

  • 简易快速安装
  • 使用标准USB接口
  • 支持11位(CAN2.0A) 标准帧和29位(CAN2.0B)扩展帧
  • 每秒能处理8000个报文
  • CAN报文的精准度可以达到100微秒
  • 支持数据帧和远程帧
  • 支持错误帧检查功能
  • 绝缘隔离, 保护CAN驱动芯片和硬件
  • 良好的EMC性能
  • IP67级别防护设计, 采用轻量型铝合金
  • 线缆均使用聚氨酯复合材料, 适合各类极端的工作环境
  • 配备110cm(44in)USB接口线缆×30cm(12in)线缆
  • 标配9针D-Sub接口,根据CiA-DS102标准
  • 低电耗
  • 适用于-40 °C - +85 °C
  • 提供免费CANKing总线分析软件, 支持Kvaser CANlib软件开发包
波特率

5-1000 kbps

温度范围

-40 - 85 °C

时间戳

100

消息每秒接收

8000 mps

消息每秒发送

8000 mps

重量

100 g

长度

200 mm

高度

20 mm

通道

1

认证

CE, RoHS

接口

USB

分类

Interfaces, Hardware

系統

Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

连接器

DSUB 9

电流隔离

错误帧生成

错误计数器读取

静音模式

材料

铝质

声响提示

目前的消费

USB供电5V约70mA

Driver

Kvaser SocketCAN Device Drivers

Kvaser SocketCAN Drivers for Linux

Version V1.7.153 Download

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.35.477 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.35.477 Download
Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.24.477 Download
Development Kits and Tools

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.17.748 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V19.3.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.35.477 Download
Documentation

Kvaser Leaf User Guide

Kvaser Leaf User Guide

Version V16.3.210216 Download

Kvaser Leaf Installation Guide

Kvaser Leaf Installation Guide

Version V4.1.0 Download
