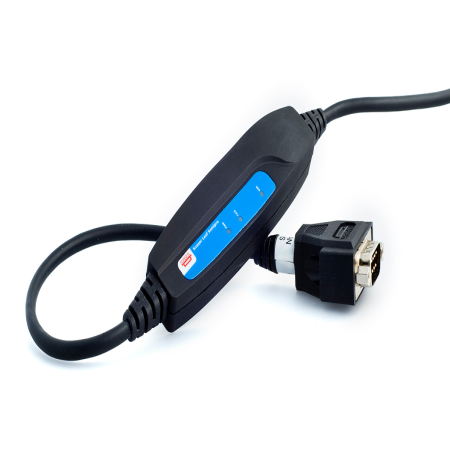

Kvaser Leaf SemiPro HS

编码: 73-30130-00242-5
价格:¥5,655.65 (包含 增值税)

Kvaser Leaf SemiPro HS是一款单通道CAN转USB产品。提供实时连接任意 几个产品至一台PC。时间通过MagiSync™功能自动实现同步给客户提供方便 同时也适合多通道使用。支持高速,低速和单线CAN

主要特性:

  • 简易快速安装
  • 使用标准USB接口
  • 支持11位(CAN2.0A) 标准帧和29位(CAN2.0B)扩展帧
  • 每秒15000条报文的处理能力
  • 报文的时间精准度可达25微妙
  • Kvaser独家专利, MagiSync时间戳同步功能
  • 可靠的纠错能力
  • 安静模式(Silent Mode)
  • 低电耗
  • 线缆均使用聚氨酯复合材料, 适合各类极端的工作环境
  • 绝缘隔离, 保护CAN驱动芯片和硬件
  • 良好的EMC性能
  • 提供免费CANKing总线分析软件, 支持Kvaser CANlib软件开发包
  • 配备110cm(44in)USB接口线缆 x 30cm(12in)CAN线缆
  • 标配9针D-Sub接口,根据CiA-DS102标准
波特率

5-1000 kbps

温度范围

-40 - 85 °C

时间戳

25

消息每秒接收

15000 mps

消息每秒发送

15000 mps

重量

100 g

长度

100 mm

高度

20 mm

通道

1

认证

CE, RoHS

接口

USB

分类

Interfaces, Hardware

系統

Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

连接器

DSUB 9

电流隔离

错误帧生成

错误计数器读取

静音模式

材料

玻璃纤维增强级PA6

声响提示

目前的消费

常规值70mA

Driver

Kvaser SocketCAN Device Drivers

Kvaser SocketCAN Drivers for Linux

Version V1.7.153 Download

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.35.477 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.35.477 Download
Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.24.477 Download
Development Kits and Tools

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.17.748 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V19.3.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.35.477 Download
Other

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.18.106 Download
Documentation

Kvaser Leaf User Guide

Kvaser Leaf User Guide

Version V16.3.210216 Download

Kvaser Leaf Installation Guide

Kvaser Leaf Installation Guide

Version V4.1.0 Download
