Kvaser USBcan Light 2xHS

编码: 73-30130-00714-7
价格:¥4,785.55 (包含 增值税)

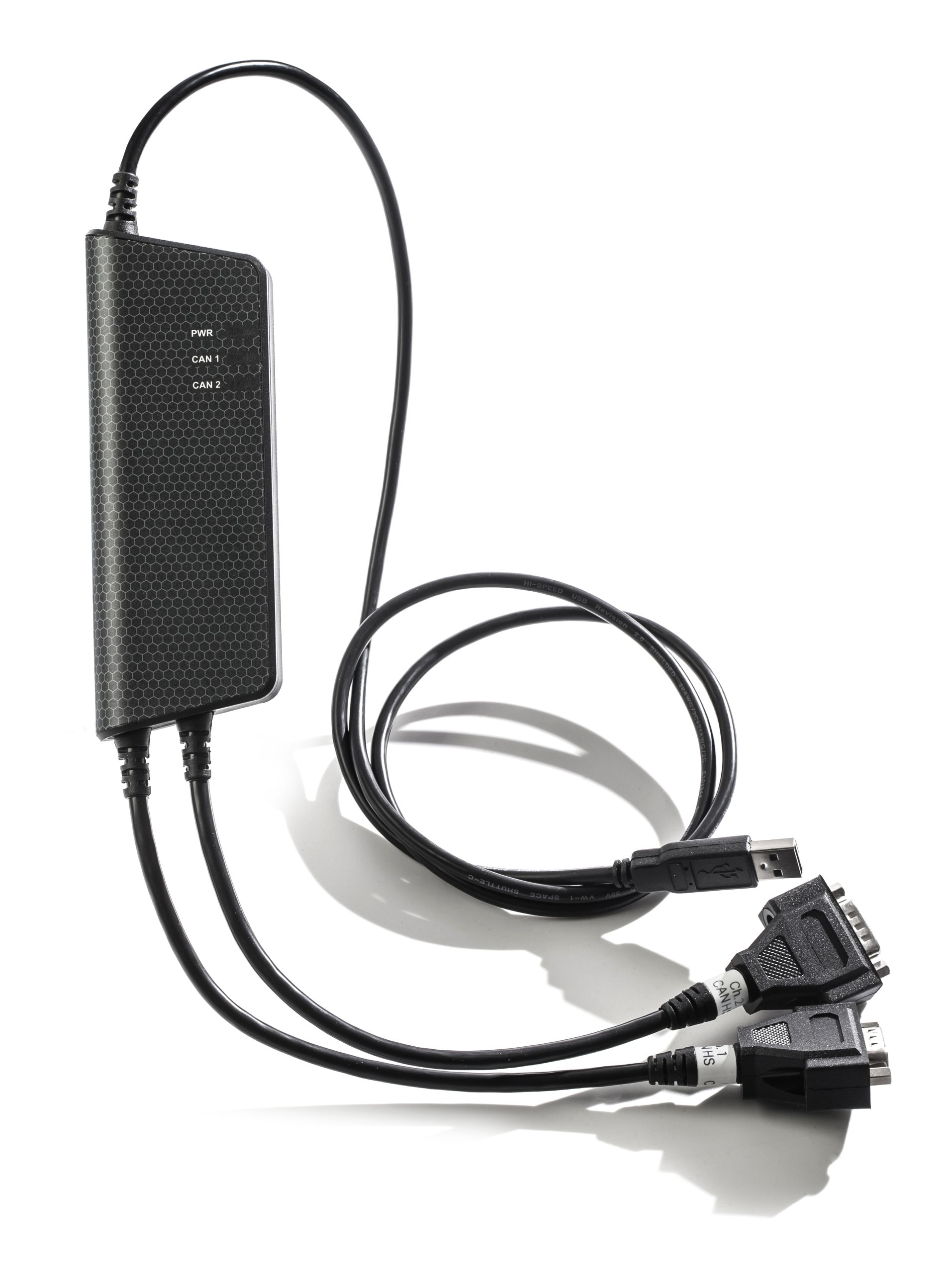

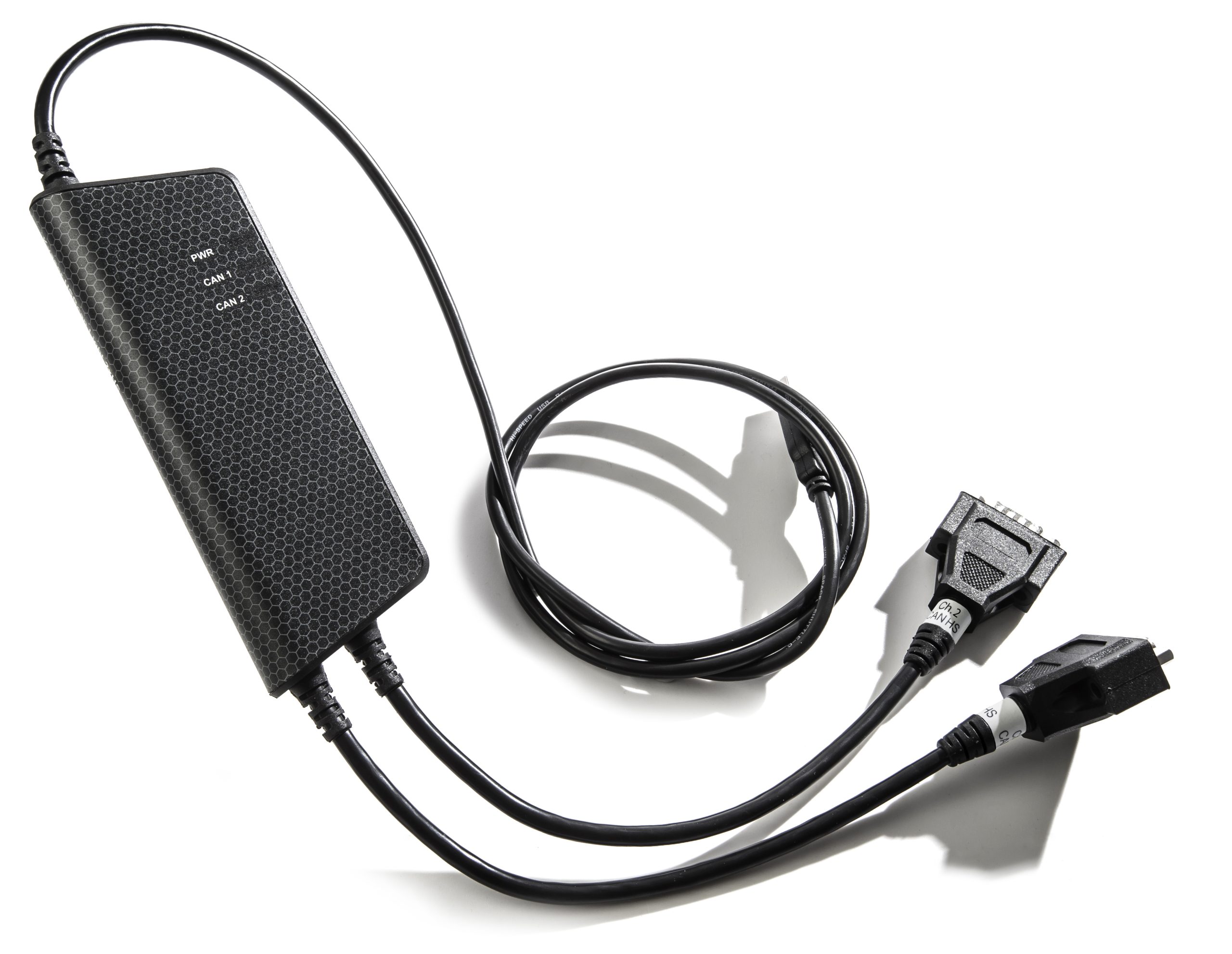

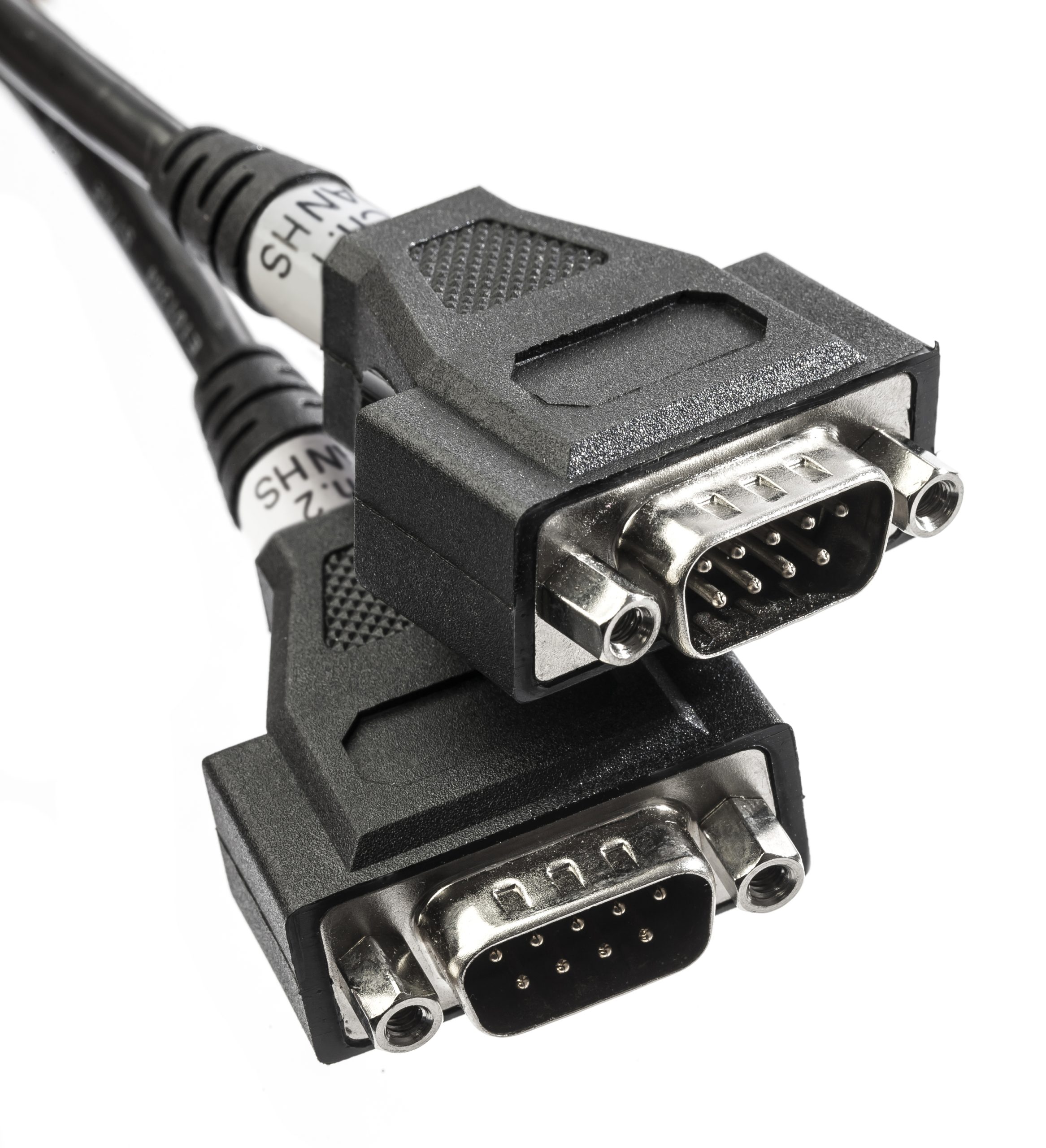

Kvaser USBcan Light 2xHS体积小巧,功能可靠。如果要把两路高速CAN总线连接到个人电脑或移动电脑,它是非常划算的选择 。Kvaser USBcan Light 2xHS一端是一个USB 2.0连接器,另一端是两个9针D-SUB连接器,比单通道的Leaf Light v2略大,但是采 用Kvaser产品有名的同样时髦的人体工学外壳设计,且带有标准的电气隔离。

Kvaser USBcan Light 2xHS带有两个高速CAN通道和一个USB 2.0接口。这三个连接器连在完全绝缘且灵活的电缆上,在CAN总线 连接器难以接触的场合(例如车辆上那些难以接触到的电子控制单元)中非常有用。

USBcan Light 2xHS提供CANlib(所有Kvaser硬件都有的软件API)。USBcan Light 2xHS的安装和配置十分简单,把Canlib下载到 主机后,只需30秒即可开始编程。

USBcan Light 2xHS的主要特性

  • 一个USB 2.0设备即可方便地访问两路CAN总线。
  • 即插即用式安装,快速简单。
  • 同时支持11位(CAN 2.0A)和29位(CAN 2.0B主动型)标识符。
  • 与使用Kvaser CANlib为其它Kvaser CAN硬件编写的应用程序100%兼容。
  • 高速CAN连接(符合ISO 11898-2标准),高达1 Mb/s。
  • 完全兼容J1939、CANopen、NMEA 2000R和DeviceNet。
波特率

40-1000 kbps

温度范围

-20 - 70 °C

时间戳

100

消息每秒接收

8000 mps

消息每秒发送

8000 mps

重量

150 g

长度

90 mm

高度

25 mm

通道

2

认证

CE, RoHS

接口

USB

分类

Interfaces, Hardware

系統

Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

连接器

DSUB 9

电流隔离

错误帧生成

错误计数器读取

静音模式

材料

PA66

声响提示

目前的消费

常规值132mA

Driver

Kvaser SocketCAN Device Drivers

Kvaser SocketCAN Drivers for Linux

Version V1.7.153 Download

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.35.477 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.35.477 Download
Development Kits and Tools

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.17.748 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V19.3.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.35.477 Download
Documentation

Kvaser USBcan Light Users Guide

User's guide for USBcan Light

Version V4.3.210216 Download
Other

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.18.106 Download
