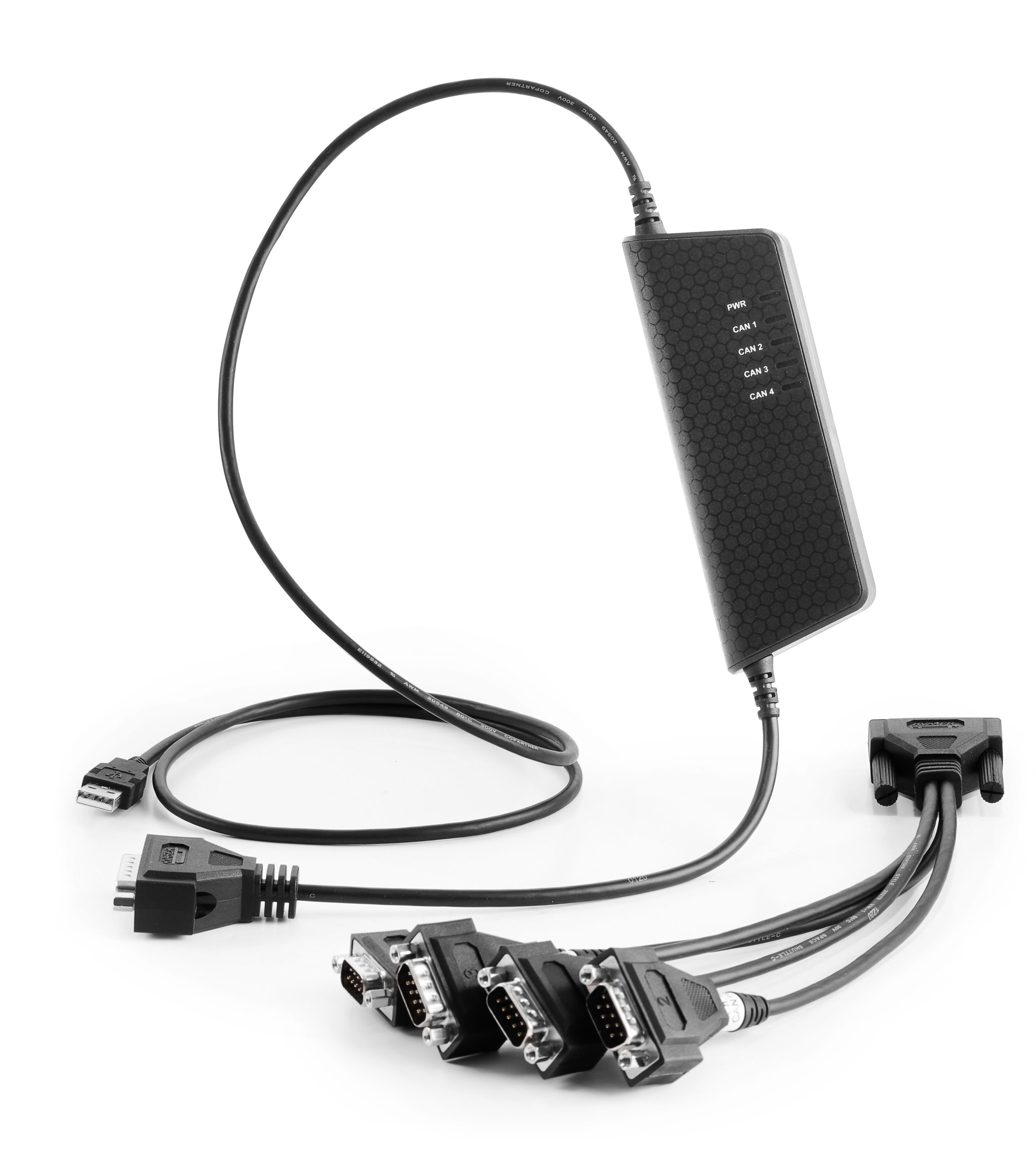

Kvaser USBcan Pro 4xHS
编码: 73-30130-01261-5
价格:¥11,259.32 (包含 增值税)
Kvaser USBcan Pro 4xHS是一种先进的便携式多通道CAN/CAN FD转USB实时接口,可发送和接收CAN总线上的标准和扩展CAN消息,时间标识精确度高。其功能包括t脚本和MagiSync™,可在多个支持Kvaser MagiSync™的设备上同步时间戳,无需额外接线。
Kvaser USBcan Pro 4xHS USB转四通道CAN接口是Kvaser USBcan Light 4xHS(00831-1)的Pro版本,是一种将四条高速CAN总线连接到PC或笔记本电脑的紧凑、可靠且经济高效的方法。
主要性能
- 多通道USB CAN接口,包括Kvaser t脚本功能。
- 每路通道每秒传输20000个报文,时间戳精度为1微秒。
- Kvaser MagiSync™—自动时间同步。
- 支持CAN FD,速率高达8 Mbit/s(需相应的物理层)。
- 支持11位(CAN 2.0A)和29位(CAN 2.0B active)标识符。
- 支持静默模式,用于分析工具——无干扰地对总线进行监听。
- 高速CAN连接(符合ISO 11898-2),速率可达1 Mbit/s。
- 工业级温度范围:−40°C到+85°C。
- 电气隔离。
- 完全兼容J1939、CANopen、NMEA 2000®和DeviceNet。
- 多台装置同时运行。
- USB总线供电。

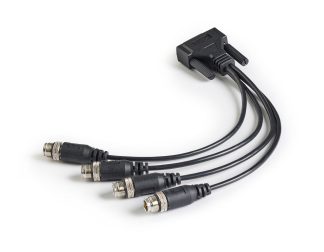

- 包括4通道分支电缆。
保修
- 两年保修。有关详细信息,请参阅我们的通用条款和政策。
支持
- 提供对所有产品的免费技术支持,请联系support@kvaser.com。
软件
- 点此链接www.kvaser.com/download免费下载文档、软件和驱动程序。
- Kvaser CANlib SDK软件开发包是免费资源,它包含您为Kvaser CAN通讯仪开发软件所需要的所有资源,包括完整文档和用C、C++、C#、Delphi、Visual Basic编写的许多程序实例。
- 所有Kvaser CAN硬件共用同样的软件API。针对一种类型设备开发的应用程序无需更改即可完全适用于其他Kvaser CAN设备!
- 提供J2534应用编程接口。
- 提供RP1210A应用编程接口。
- 提供Windows HTML帮助和Adobe Acrobat格式的在线文件。
波特率
40-1000 kbps
温度范围
-40 - 85 °C
时间戳
1
消息每秒接收
20000 mps
消息每秒发送
20000 mps
重量
150 g
长度
170 mm
高度
20 mm
通道
4
认证
CE, RoHS
接口
USB
分类
Interfaces, Hardware, CAN
系統
Linux, Win 7, Win 10, Win 8
连接器
26-pin HD D-SUB
电流隔离
是
错误帧生成
是
错误计数器读取
是
静音模式
是
材料
PA66
声响提示
否
目前的消费
max 500 mA
Driver
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardware.
Kvaser Linux Drivers and SDK
Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.
Kvaser DIADEM driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
Firmware
Kvaser Firmware Update Tool
Firmware Update tool for most Kvaser devices.
Documentation
Kvaser USBcan Pro 4xHS User's Guide
Kvaser USBcan Pro 4xHS User's Guide
Development Kits and Tools
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Other
Kvaser CANKing
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
