Kvaser Cable HD26-4xM12 Splitter
编码: 73-30130-01412-1
价格：¥1,279.16 (包含 增值税)
Log in for shipping information.
The Kvaser Cable HD26-4xM12 Splitter can be used with several of Kvaser’s four channel products.

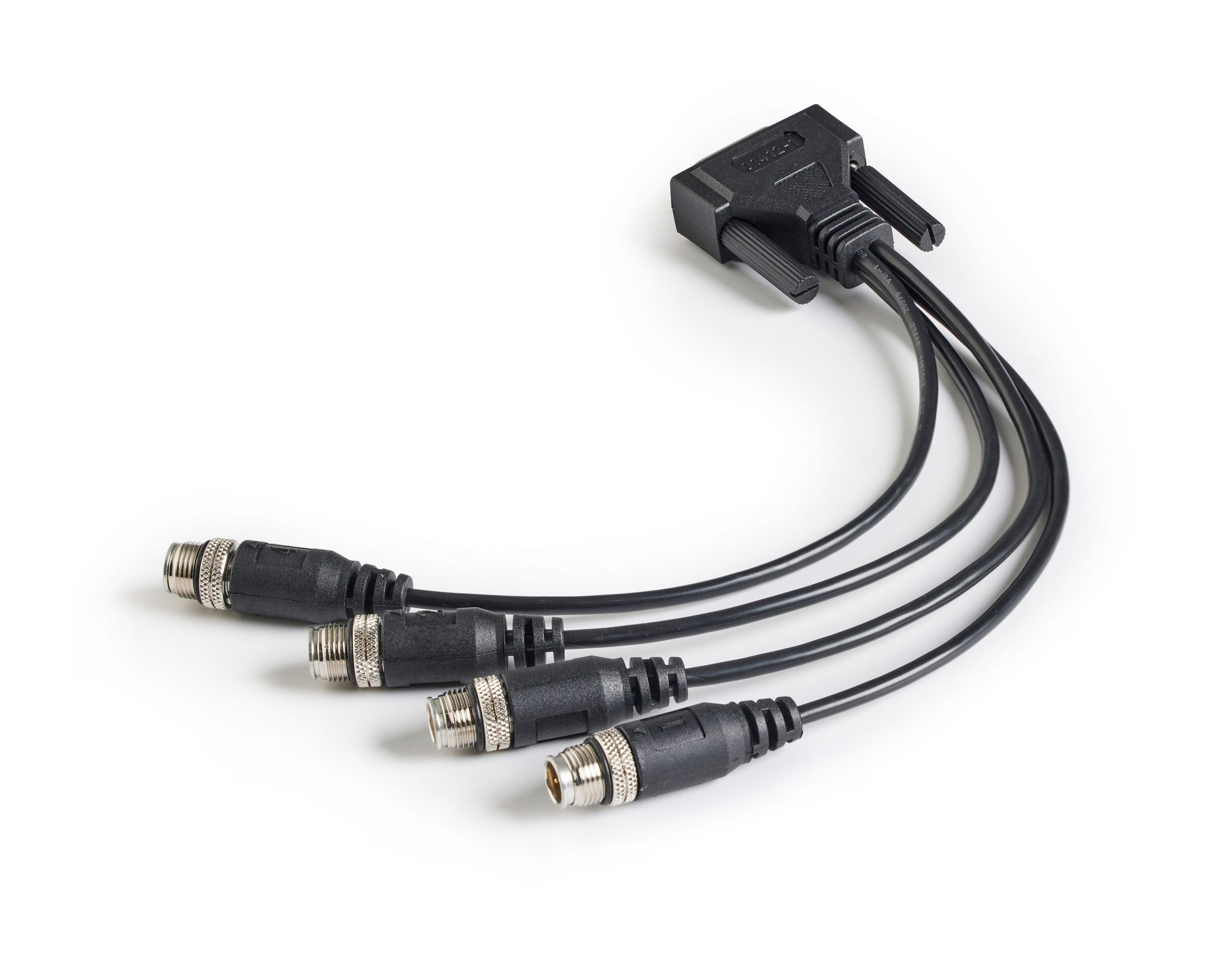

The high-quality, shielded HD26-4xM12 splitter cable facilitates the connection to four separate CAN networks with M12 ports. At 0.3 m (approx. 0.98 ft) long, this splitter - or breakout cable as it is sometimes known - has a standard 26 pin HD D-SUB connector at one end, and four A-coded 5 pin M12 connectors at the other.
Major Features
26 pin HD D-SUB connector
5 pin M12 connectors x 4
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting support@kvaser.com.
温度范围
-40 - 85 °C
重量
100 g
长度
300 mm
通道
4
认证
CE, RoHS
分类
CABLES, Hardware
连接器
26-pin HD D-SUB
电流隔离
否
错误帧生成
否
错误计数器读取
否
静音模式
否
声响提示
否
