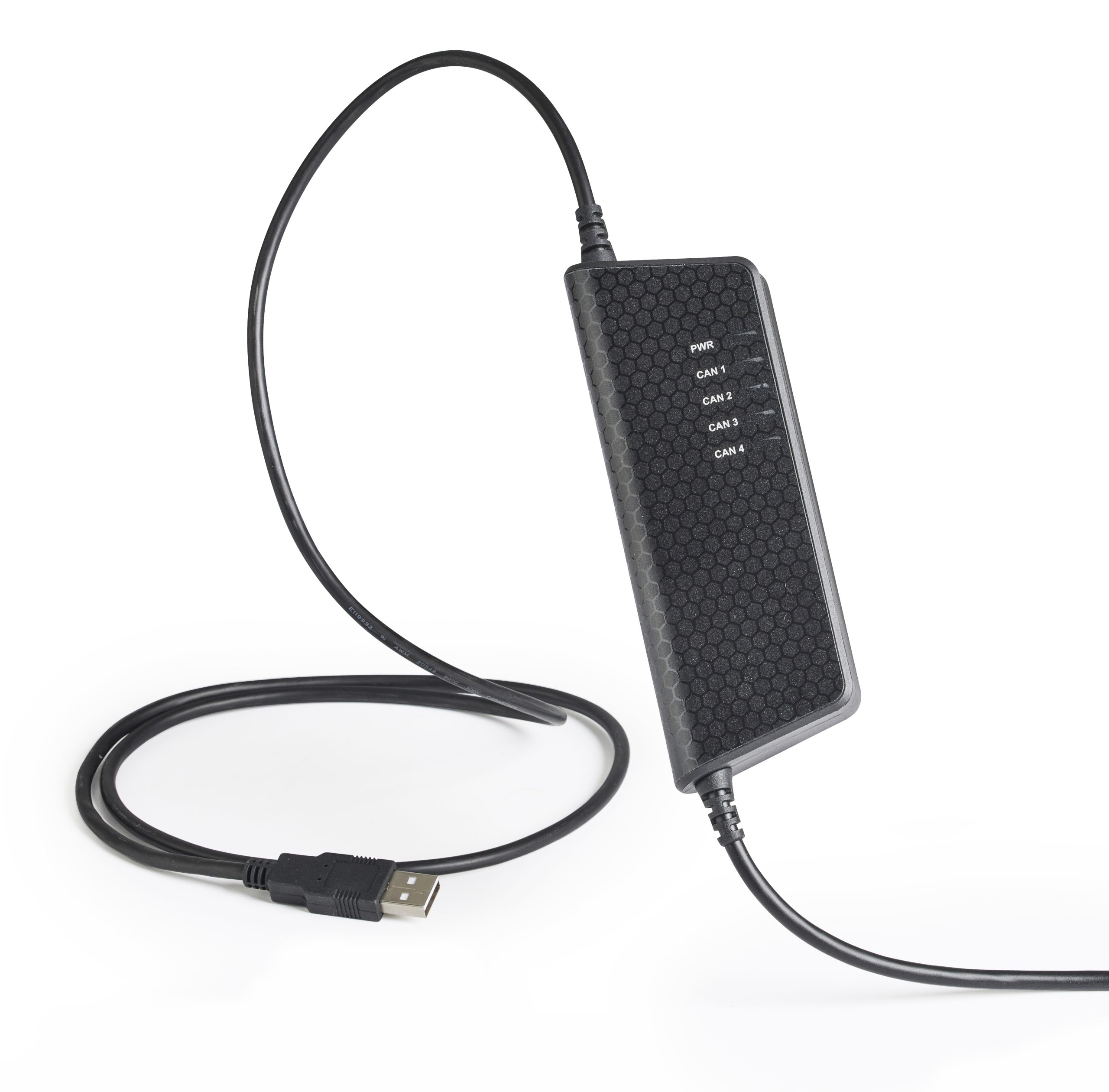

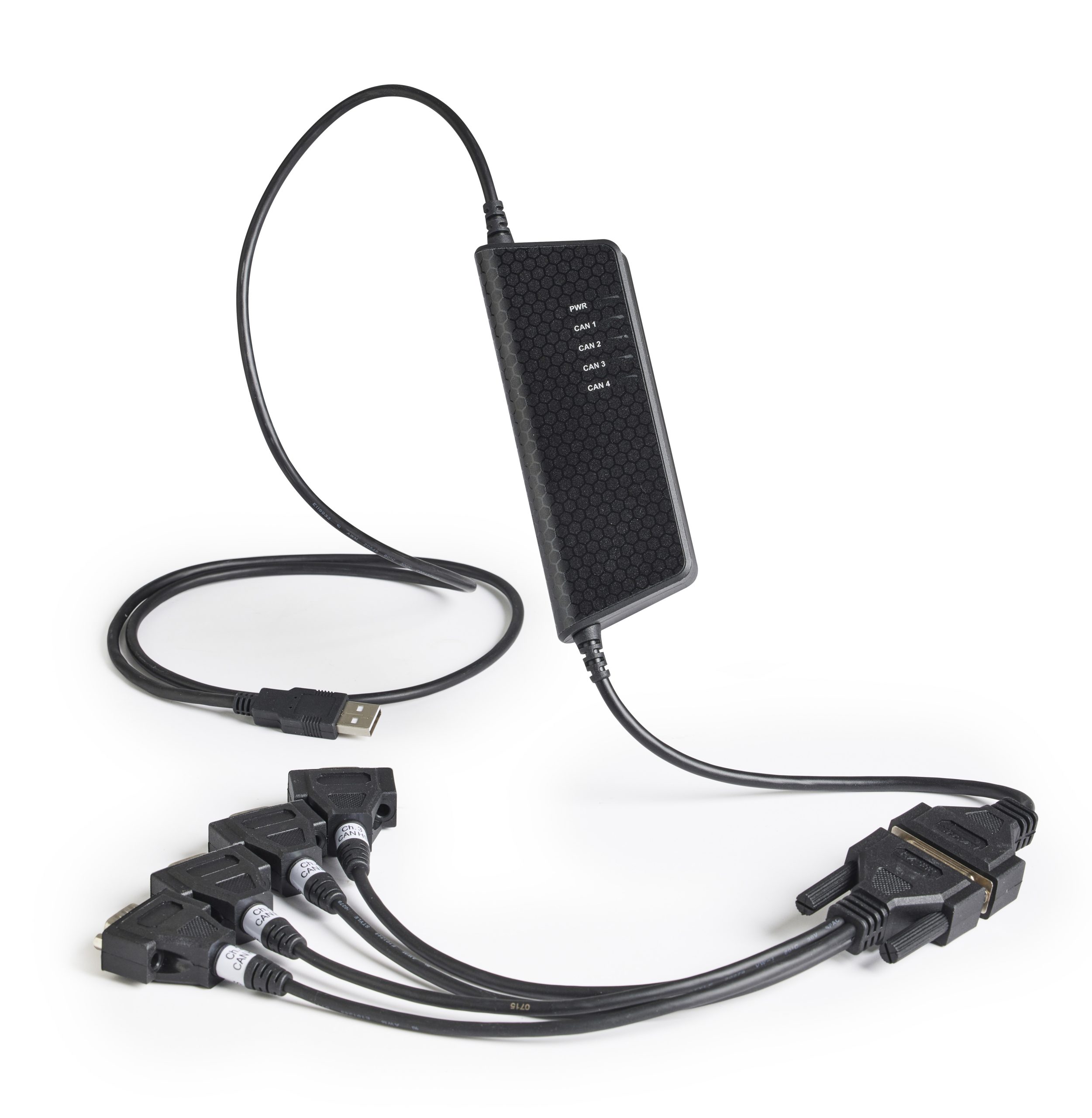

Kvaser USBcan Pro 4xCAN Silent
编码: 73-30130-01411-4
价格：¥11,259.32 (包含 增值税)
Log in for shipping information.
The USBcan Pro 4xCAN Silent, a compact, multichannel four-channel CAN/CAN FD to USB real-time interface that is always silent on the CAN bus (‘listen only’). This CAN interface is made silent through hardware and thus, cannot transmit on bus.
Standard CAN interfaces receive and transmit CAN messages, enabling them to be used to configure the system to which they are connected. However, certain customers, particularly those developing highly sensitive autonomous or safety-critical systems, require CAN interfaces capable of listening only, so that the interface has no impact on the bus or surrounding systems. Listen-only interfaces are also used to prevent any application or third-party, such as a hacker, from impacting the CANbus and its related systems through the Kvaser device.
Major Features
- USB CAN interface with Kvaser t programmability.
- Always silent – listens to the bus without interfering it.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Power is taken from the USB port.
- 100% compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Kvaser MagiSync – automatic time synchronization (see Section 4.7, Kvaser MagiSync, on Page 19 for more details).
- Supports simultaneous usage of multiple Kvaser interfaces.
Warranty
2-Year Warranty. See our General Conditions and Policies for details.
Support
Free Technical Support on all products available by contacting support@kvaser.com.
Software
- Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
波特率
20-1000 kbps
温度范围
-40 - 85 °C
时间戳
1
消息每秒接收
20000 mps
消息每秒发送
0 mps
重量
400 g
长度
170 mm
高度
20 mm
通道
4
认证
CE, RoHS
接口
USB
分类
Interfaces, Hardware, CAN
系統
Linux, Win 7, Win 10
连接器
26-pin HD D-SUB
电流隔离
是
错误帧生成
否
错误计数器读取
是
静音模式
是
材料
PA66
声响提示
否
目前的消费
Typical 150 mA
Driver
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardware.
Kvaser Linux Drivers and SDK
Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.
Kvaser DIADEM driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
Firmware
Kvaser Firmware Update Tool
Firmware Update tool for most Kvaser devices.
Documentation
Kvaser USBcan Pro 4xCAN Silent User's Guide
User's Guide for Kvaser USBcan Pro 4xCAN Silent
Development Kits and Tools
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Other
Kvaser CANKing
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
