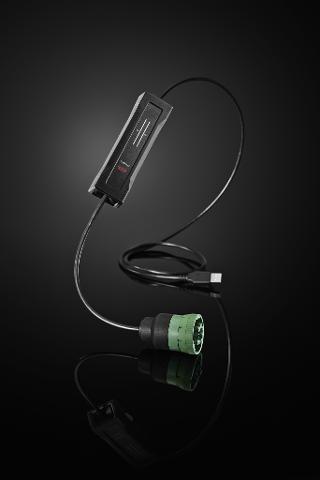

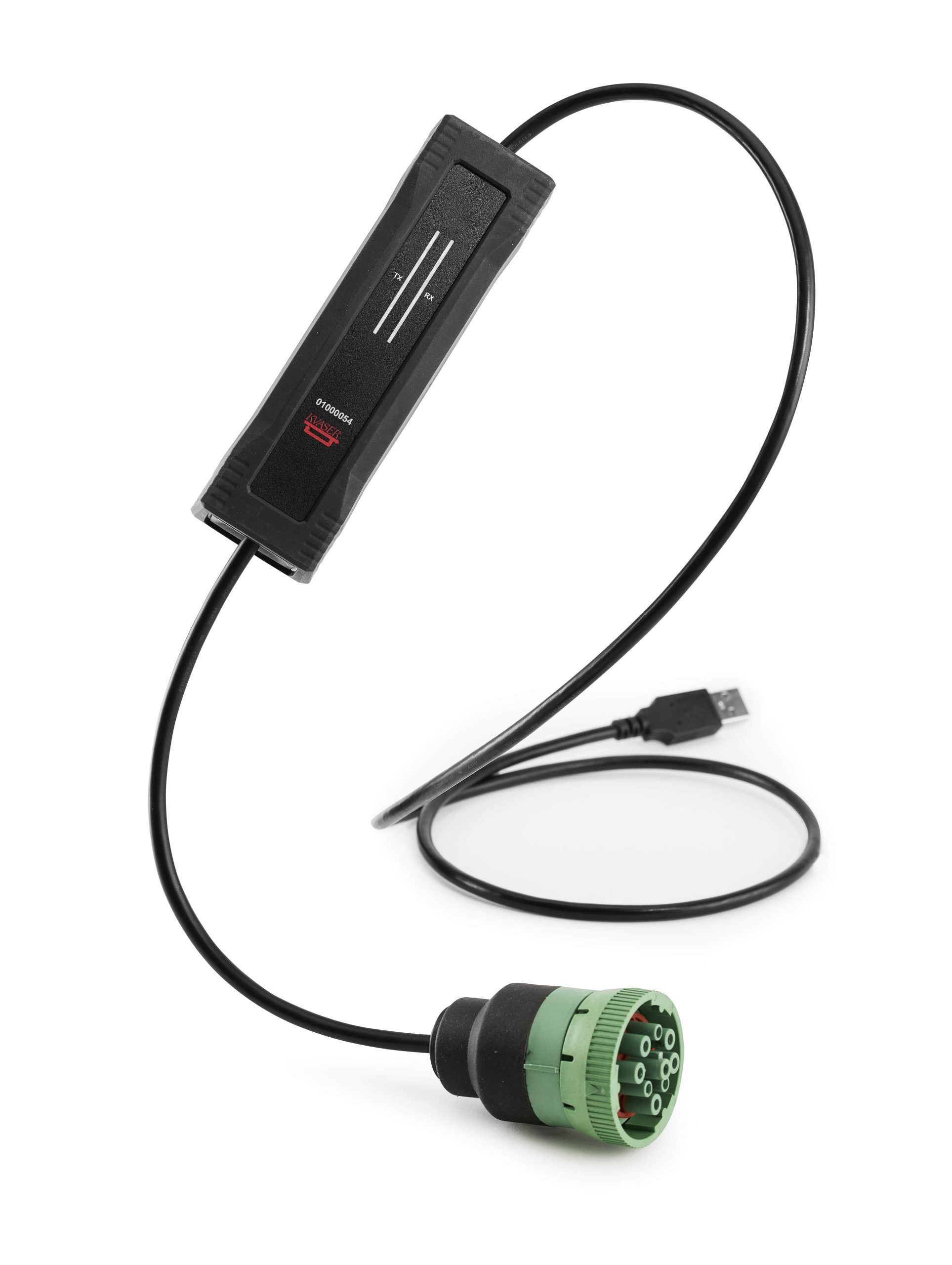

Kvaser U100P-X1

编码: 73-30130-01269-1
价格:¥6,535.92 (包含 增值税)

The Kvaser U100P-X1 is a robust, single-channel CAN/CAN FD to USB interface with reinforced galvanic isolation (Tested according EN 60335) that squarely addresses the needs of the evolving automotive development market. Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet, this is the first in a new range of interfaces that is also suited to rugged applications in marine, industrial, heavy duty vehicle and heavy industries.

The Kvaser U100P is also available with 9-pin D-SUB, M12 or OBD-II CAN connectors.

Major features

  • USB CAN interface.
  • Powered through the USB connector.
  • Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Supports silent mode for analysis tools – listen to the bus without interfering.
  • Lightweight robust housing made of glass fibre reinforced polyamide overmolded with TPE.
  • Intuitive LED UI.
  • Reinforced Galvanic Isolation. (Tested according EN 60335-1:2012 paragraph 13, 5000VAC rms applied for 60 seconds)
  • Industrial grade temperature range, −40 ◦C to +85 ◦C.
  • 20 000 msg/s, each timestamped with a resolution of 1 μs.
  • Kvaser MagiSync – automatic time synchronization.
  • Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
  • Support for SocketCAN.
  • Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
  • IP67 rated housing.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

Software

  • Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Java, Python and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface is available.
  • RP1210A Application Programming Interface is available.
  • Documentation in Windows HTML-Help and Adobe Acrobat format.
波特率

10-1000 kbps

温度范围

-40 - 85 °C

时间戳

1

消息每秒接收

20000 mps

消息每秒发送

20000 mps

重量

212 g

长度

128 mm

高度

26 mm

通道

1

认证

CE, RoHS

接口

USB

分类

Interfaces, Hardware, CAN

系統

Linux, Win 7, Win 10, Win 8

连接器

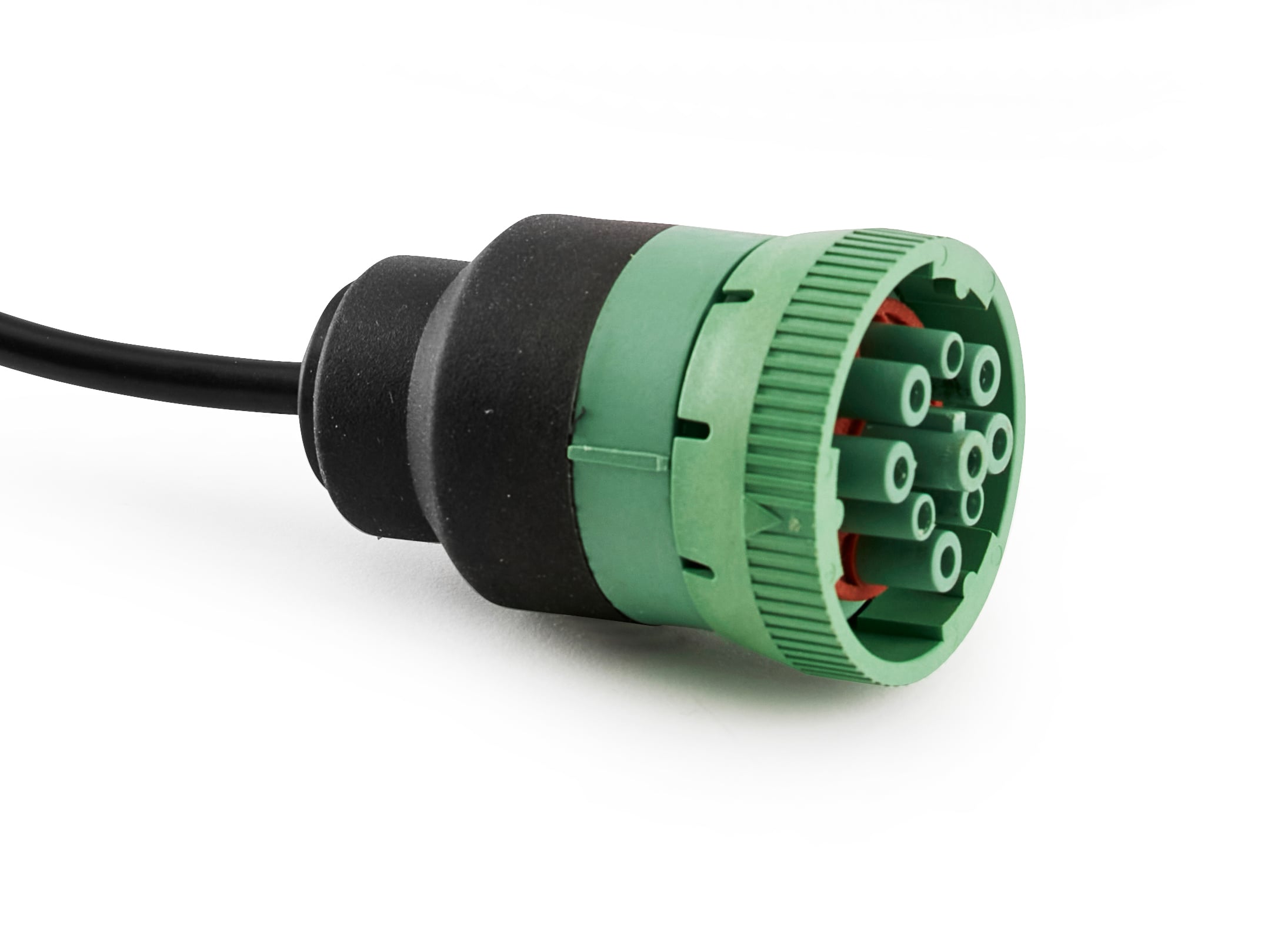

J1939-13 Type II

电流隔离

错误帧生成

错误计数器读取

静音模式

材料

Glass Fiber Reinforced PA6

声响提示

目前的消费

Typical 250 mA

Driver

Kvaser SocketCAN Device Drivers

Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardware.

Version V1.14.251 Download

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.

Version V5.43.472 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.43.472 Download
Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.31.472 Download
Documentation

Kvaser U100P-X1 User's Guide

Kvaser U100P User's Guide

Version V1.3.230913 Download
Development Kits and Tools

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.24.935 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V23.1.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.43.472 Download
Other

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.25.575 Download
