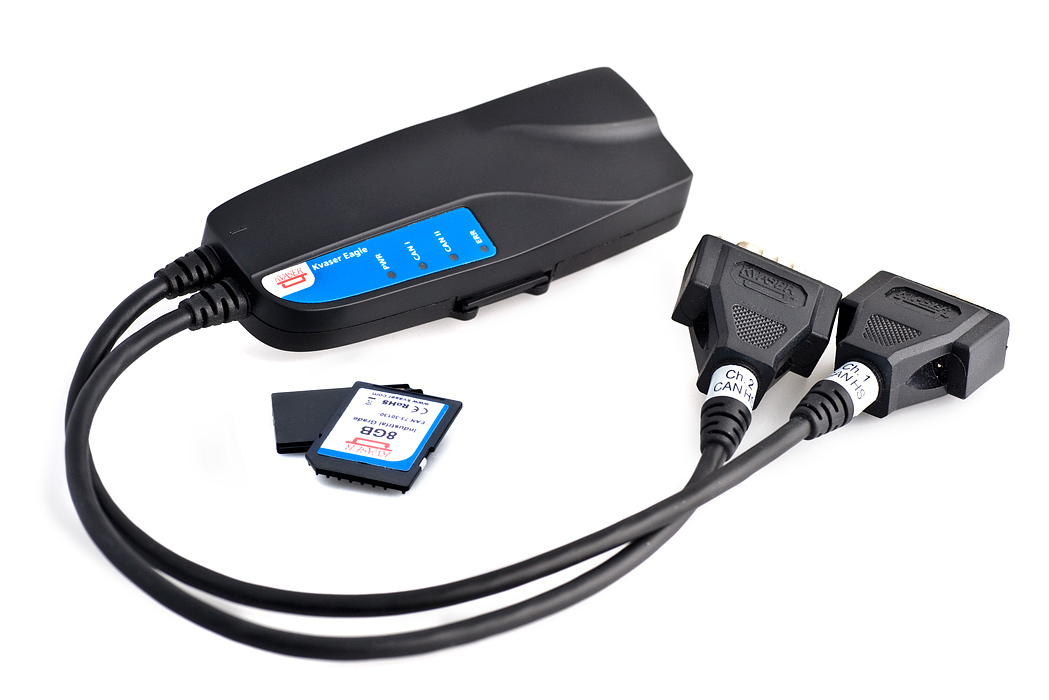

Kvaser Eagle

编码: 73-30130-00567-9

具有灵活性/通用性, Kvaser Eagle提供了更先进的CAN总线信息记录及统计能力。 Kvaser Eagle的革命性进化,使其比Kvaser Memorator以及市场上众多的CAN总线产品拥有更多强大的功能。它更具有采集各种CAN事件触发信息的功能,能实现周期性信息采集并拥有更长的记录时间。

Kvaser Eagle 完全对应CANlib软件开发包,此外我们还提供Eagle专用的软件,有助于设定各类CAN总线/触发条件/过滤功能的参数。Kvaser t-语言是一种接近C语言并加上互动条件触发功能的一种编程语言,能让用户在个人的开发平台上,灵活地自行开发应用在Eagle的上层软件。

主要特性:

  • Kvaser Eagle 的 t-语言编程功能,能够直接开发上层应用程序
  • t-语言程序具备加密功能,可以保障用户的知识产权
  • 即插即用,加上简易明了的t-语言使用手册,让用户更便捷的开发自己的产品
  • 革命性的三个内置处理器核心
  • 每一个CAN通讯通道由独立的处理器管理,再加上使用独立的处理器来管理t-语言,Kvaser Eagle三合一的心脏,能充分提升CAN总线各功能的精准度及t-语言所带来 的灵活及强大效能
  • 200Mhz处理器提供优越的效能以及低功耗
  • 具备高容量缓冲及缓冲区溢位警示LED
  • 高层协议如ISO15765和J1939可以利用t-语言实现
  • Kvaser Eagle已包含了ISO15765-2的t语言使用范例
温度范围

- °C

重量

g

分类

Hardware, Dataloggers

电流隔离

错误帧生成

错误计数器读取

静音模式

声响提示

Firmware

Kvaser Firmware Update Tool - Eagle ONLY

Firmware Update tool for Kvaser Eagle ONLY

Version V4.19.998 Download
Driver

Kvaser SocketCAN Device Drivers

Kvaser SocketCAN Drivers for Linux

Version V1.7.153 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.35.477 Download
Development Kits and Tools

Linux SDK library

Linux SDK library.

Version V5.35.477 Download

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.17.748 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V19.3.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.35.477 Download
Other

Kvaser Database Editor 3

Kvaser Database Editor 3 (candbfd)

Version V3.14.477 Download

Kvaser Memorator Configuration tool

Configuration tool for Kvaser Memorator Pro 5xHS, Kvaser Memorator 2xHS v2, Kvaser Memorator Light HS v2 and Kvaser Eagle

Version V5.25.477 Download

Kvaser Database editor

Standalone installer for Kvaser Database Editor.

Version V2.5.475 Download

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.18.106 Download
Documentation

Specification of Kvaser Memorator Device configuration XML format

Specification of Kvaser Memorator Device configuration XML format

Version V2.1.210216 Download

Kvaser Eagle Users Guide

User guide for Kvaser Eagle

Version V1.1.0 Download

Kvaser Database Editor Users Guide

Kvaser Database Editor User's Guide

Version V2.0.0 Download

Kvaser t Programming Language

Documentation for the t programming language

Version V4.17.210216 Download
